- Catalog Items
- >
- Nitrogen Gas Springs
- >
- Series
- >
- SC Series - Super Compact
- >
- SC Series
- >
- SC.04700
- >

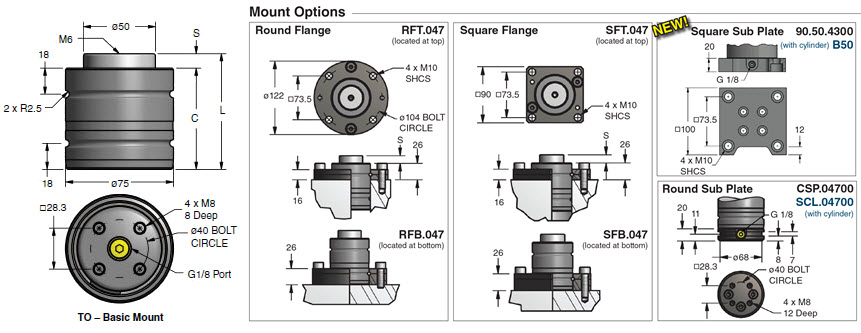

- SC.04700.10.TO
Product Details
| Configuration | |
| Charging Pressure (bar) (15 to 150) | |
| Mount Option | |
| Series | SC |
| Model | 04700 |
| Stroke Length Order Code (mm) | 10 |
| S (mm) | 10.0 |
| C (mm) (mm) | 70.0 |
| Overall Length (mm) | 80.0 |
| Max On-Contact Force (lb) | 10509 |
| Max On-Contact Force (daN) | 4676 |
| Can Diameter (mm) | 75.0 |
| Documentation | |
| Catalog/Bulletin | sc_catalog.pdf |
