Save design, build, and installation time with DADCO’s all-in-one approach to guided nitrogen lifters. Available in a full variety of models, including non-rotating and cushioned versions, this series is ideal for progressive dies.Non-Rotating Nitrogen Gas Lifters
SLN.90, SLN.180 and SLN.300
SLN.090, SLN.180 and SLN.300 non-rotating nitrogen gas lifters provide an all-in-one lifter approach to guided lift applications. These lifters include built-in guidance for single, multipoint or rail lift applications and are ideal for progressive stamping dies. All three force models (0.1 ton, 0.2 ton, 0.3 ton) are powered by DADCO’s Micro or Mini nitrogen gas springs.
SLC.500 and SLC.800 nitrogen gas spring lifters eliminate the need for separate guide and shock absorbing elements and provide stable lifting for rail applications. These lifters, available in two force models (0.24 ton, 0.8 ton), are supplied as linked units to provide uniform force for improved part handling and are ideal for progressive die lifter rails, work holding and balancing applications.
SL2.090, SL2.180 and SL2.300
SL2.090, SL2.180 and SL2.300 two post lifters are rugged and reliable. These lifters feature narrow profile rail plates (25 mm, 32 mm and 55 mm) for attachment and are ideal for progressive die lifter rails, work holding and balancing application. All three force models (0.1 ton, 0.2 ton, 0.3 ton) are powered by DADCO’s Micro or Mini nitrogen gas springs.

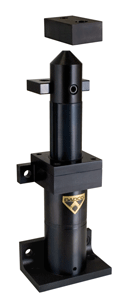

SLN.180 Flange Model
The SLN.180 Flange Model micro nitrogen gas lifter meets the Ford WDX06-80M Die Standard for stamping components and is used to strip parts from the die in forming applications. Available in one force model (0.2 ton), there are two attachment options offered to accommodate different types of flange stripper applications.
